Vacuum Pumps and Systems
Designed and built to meet your needs.
Tailored for your applications
With over 75 years of unparalleled industry expertise, Brenner-Fiedler offers vacuum pumps and vacuum systems known for being uncompromisingly reliable with unbeatable performance. With dedicated product specialists and numerous models to choose from, we ensure you’ll find the right fit for your applications.
Dry Claw Pumps
The KVC dry claw is environmentally friendly with top of class efficiency. Dry, contract free operations which allows for minimal wearing of parts and maintenance needed with oil-free compression.

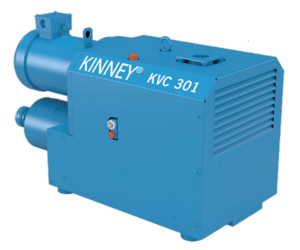

KVC Rotary Dry Claw
• Ultimate vacuum down to 75 Torr or 27″ Hg Vacuum.
• Dry, contact-free operation meaning no oil or sealing fluid is present in the compression chamber.
• High-Efficiency, top of the class CFM/HP efficiency and low power consumption.
• Low noise, sound levels as low as 76 dB(A).
• Low maintenance with extended service intervals.
• Air cooled.
Typical Applications for KVC Rotary Dry Claw
- Pick & Place
- Food Packaging
- Degasification
- Thermoforming
- CNC Router Tables
- Central Vacuum
The KVC Series claw pumps offer a compact footprint requiring a minimal amount of floor space. Contactless operation means minimal wearing parts, minimal maintenance needed, and total oil-free compression. The KVC claw pumps have a highly efficient design not only for energy efficiency, but also efficiency for CFM per HP.
MD-Kinney’s KVC Rotary Dry Claw Pump
A short video overview of its benefits.
Oil-Lubricated Rotary Vane Vacuum Pumps
The KVO and KVA rotary vane vacuum pumps have a simple design that reinforces the reliability and durability required in the vacuum industry.

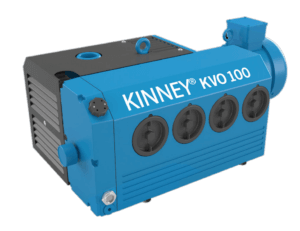

KVO Single Stage
• Ultimate vacuum down to 0.375 Torr with a gas ballast, or down to 0.075 Torr without the ballast.
• Equipped with a standard gas ballast valve that opens automatically to control water vapor handling.
• Low noise, advanced cylinder and cover designs allow for sound levels as low as 67 dB(A).
• Premium oil separator system that removes virtually all oil from the air stream.
• Oil-flooded, multi-vane vacuum pumps are air-cooled and direct driven.
• Easy maintenance with easy to access filter elements on the front of the machine without the need for special tools.

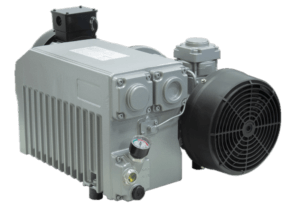

KVA Single Stage
• Most models can achieve ultimate pressure levels near 0.1mbar (75 microns).
• Compact design for easy installation.
• Carbon composite vane material for long life.
• Oil-flooded, multi-vane vacuum pumps. Single stage, air cooled, and direct driven.
• Oil level sight glass and vibration isolators.
• TEFC high efficiency tri-voltage motor. (208-230/460V 50/60)
• Models KVA 25-40 include spin-on oil filter and exhaust pressure gauge.
• Ideally suited for clean or moderately contaminated application when suction filters are fitted to the pump.
Typical Applications for KVO and KVA Single-Stage Pumps
- Vacuum Packaging
- Plastic Thermoforming
- Food Processing
- Central Vacuum Systems
Oil-sealed rotary vane vacuum pumps are simple, quiet, and efficient – offering a very attractive $/CFM ratio when compared to other technologies. Pumps can last for years with proper maintenance but are also affordable enough that they can be periodically replaced when used in toxic conditions.
Achieve Continuous Operation with Kinney KVO Vane Vacuum Pumps
A short video demonstrating the operation of Kinney’s KVO vane vacuum pump.
Rotary Piston Pumps
Rotary piston pumps are built with durability in mind. They are able to withstand rugged and exceptionally dirty processes – all without sacrificing their integrity and efficiency.

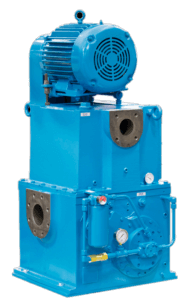

KT Single-Stage Rotary Piston Pump
• High pumping capacity at high and low pressures.
• Triplex piston design: dynamically balanced and practically vibration free.
• No metal-to-metal contact between pump piston and cylinder. Clearances are filled with oil.
• Quiet operation.
Typical Applications for KT Single-Stage Rotary Piston Pump
- Heat Treating
- Coating
- Transformer Crying
- Metallurgy
KT models include an integral, positive pressure lubrication system to insure reliable lubrication at all pressure levels. KT pumps are water-cooled. Optional air-cooling systems are available. Adjustable gas ballast valves are standard for handling water and other vapor loads. Optional factory-mounted oil filtration system lowers maintenance costs and increases uptime.

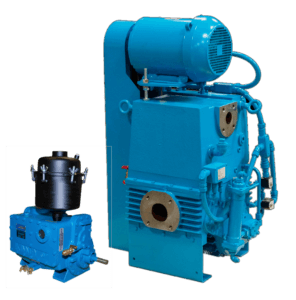

KC and KTC Two-Stage Rotary Piston Pumps
• Recommended for applications where operating pressure is below .1 Torr (0.13 mbar)
• Achieve lowest possible pressures from mechanical pumps.
• No metal-to-metal contact between pump piston and cylinder. Clearances are filled with oil.
• Quiet operation.
Typical Applications for KC and KTC Two-Stage Rotary Piston Pumps
- Liquid Gas Storage
- Brake Fluid Filling
- Silicon Crystal Growing
- Evacuation (Refrigeration Systems)
KC and KTC pumps are air-cooled. KTC-112 is water-cooled with optional air-cooling systems. Adjustable gas ballast valves are standard for handling water and other vapor loads. KTC pumps feature triplex piston design: dynamically balanced and practically vibration free.

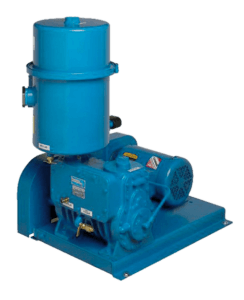

KD and KDH Single-Stage Duplex Rotary Piston Pumps
• Absolute pressures down to the low micron range.
• Belt-driven, low-speed rotary piston pumps.
• No small orifices to plug up.
• No metal-to-metal contact between pump piston and cylinder clearances are filled with oil.
• Adjustable gas ballast permits handling of condensable vapors.
• KD pumps are air-cooled. KDH pumps are water-cooled.
Typical Applications for KD and KDH Single-Stage Duplex Rotary Piston Pumps
- Drying Chambers
- De-gasifiers
- Filling Machinery
- Evacuation (Process chambers)
Kinney stands by its 100+ years of quality and durability in vacuum pump technology by offering the longest rotary piston pump warranty in the industry – 30 months!

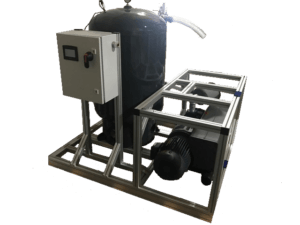

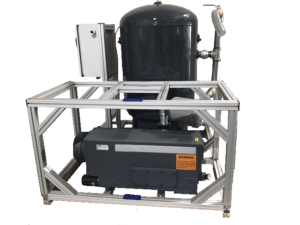

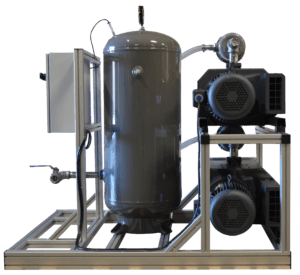

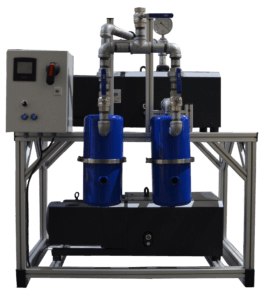

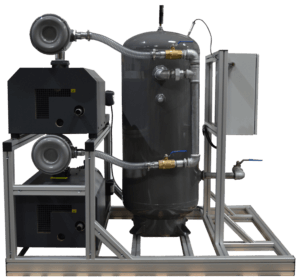

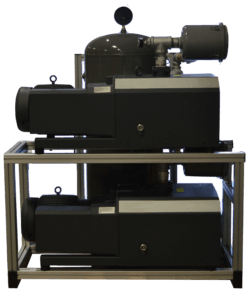

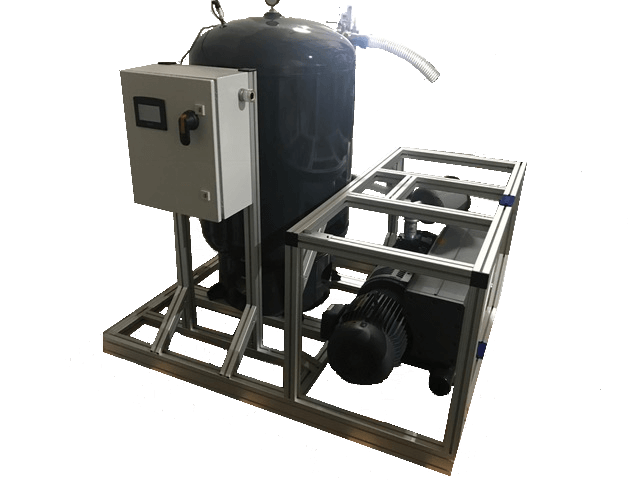

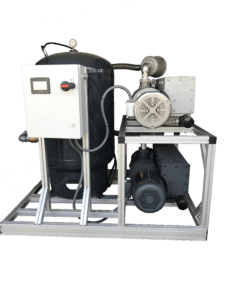

Vacuum Systems
We use vacuum pumps as a part of larger vacuum solutions. These custom solutions were built specifically to meet the needs of a customer. The builds being framed on our aluminum profiling system allows for easy modifications, additions, upgrades, or disassembly. This also means that we can create a solution that will fit in the space you have.
To learn more about the versatile aluminum profiling used to frame these vacuum system builds, visit our dedicated aluminum profiling page.
Finding the right vacuum solution requires extensive knowledge and a thorough understanding of all the aspects that affect selection. Our product specialists take every requirement into consideration when designing complete vacuum systems. From specific measurements and environmental factors to special legislative requirements, our product specialists take each variable into consideration to save you energy, time, and money.
